STANDARD CONSTRUCTION

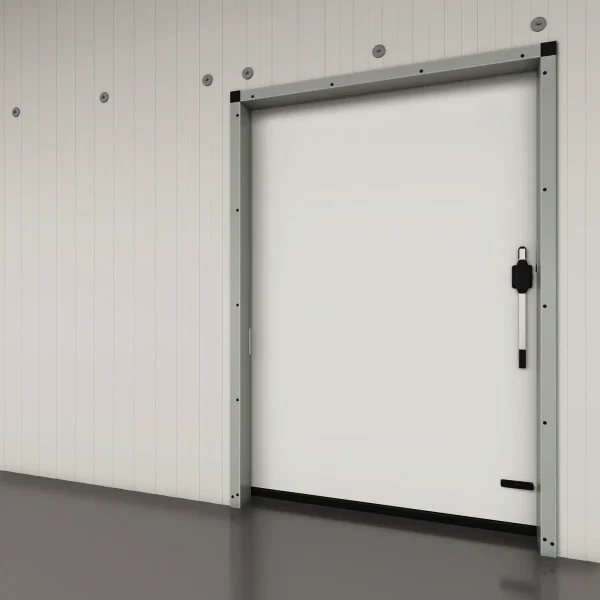

- Sliding door for internal aplication in positive temperature rooms
- Installation on panel or masonry wall
- 90mm thick aluminum door leaf
- Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)
- Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
- Lower and perimetral EPDM gasket
- Door leaf supported by brackets and pulleys (made of technopolymer) with increased diameter wheels and sliding on anodized aluminum guide rail (with rail cover)

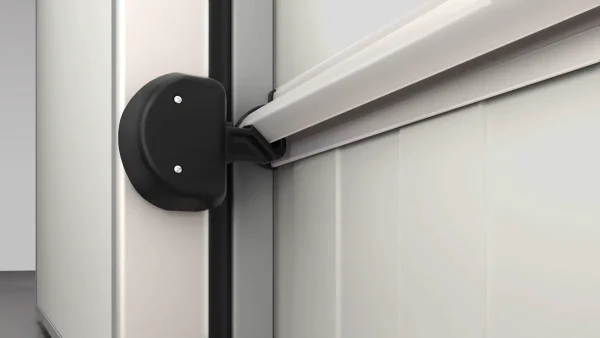

- Lower guide made of anodized aluminum, panel mounted
- “Heavy Duty” sliding system suitable for large-sized doors

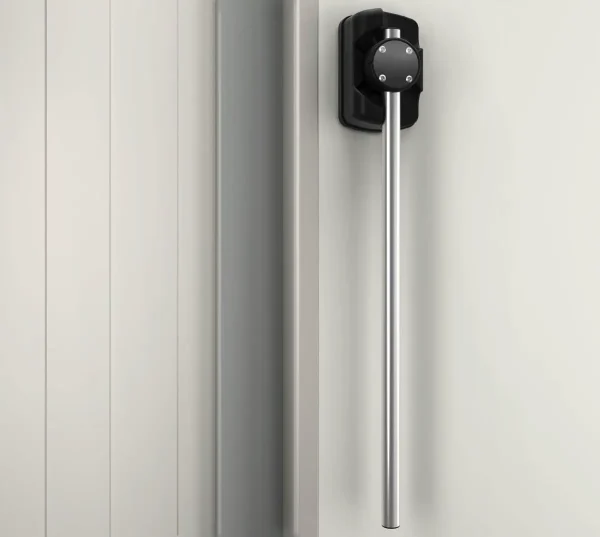

- Original MIV design internal and external lever handle

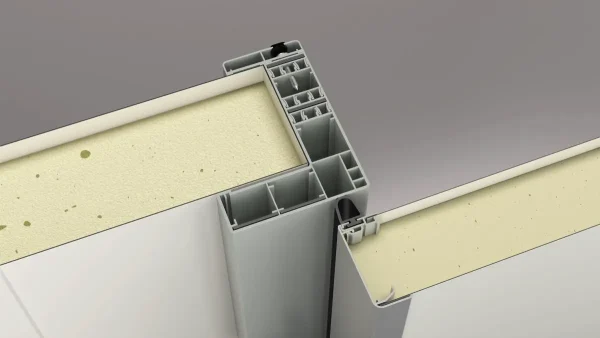

- “L” shape PVC frame (140mm length and 45mm thick) with additional modules to reach the thickness of the panel. PVC counterframe for wall installation (Variant with aluminum frame and counterframe
- Without threshold (Variant with floor level doorsill)
OPTIONAL
- Original MIV design lock
- Automated System
