Via Einstein, 23 Avigliana (TO)
STANDARD CONSTRUCTION

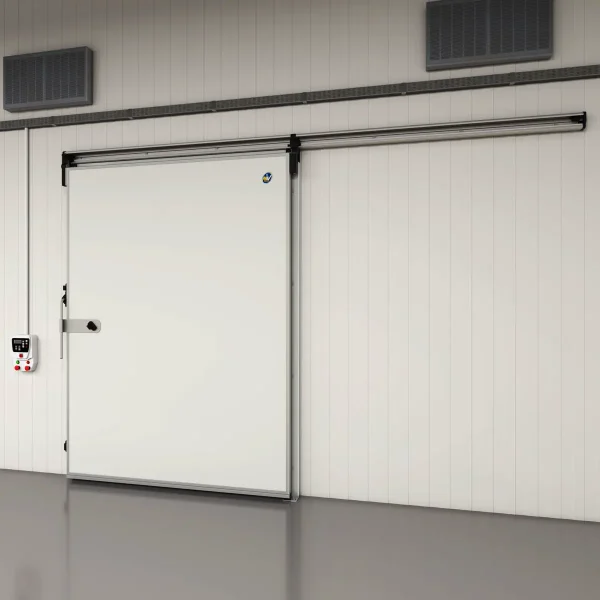

- Sliding door for internal aplication in positive temperature rooms
- Installation on panel or masonry wall
- 90 mm or 120 mm thick aluminum door leaf
- Internal and external coating in white plasticoated metalsheet (Stainless steel coating available as optional)

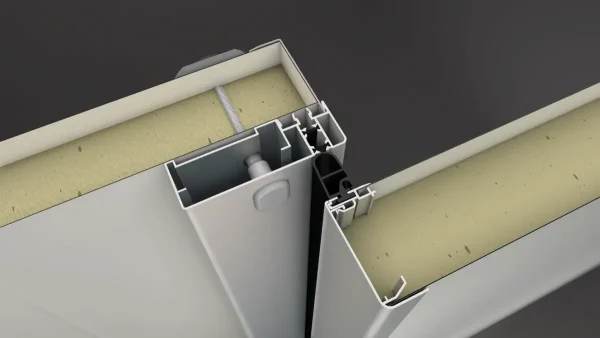

- Door leaf injected with polyurethane foam “PUR” CFC free 40-42 Kg/cu.mtr density
- Lower and perimetral EPDM gasket
- Door leaf supported by brackets and pulleys (made of technopolymer) with increased diameter wheels and sliding on anodized aluminum guide rail (with rail cover)

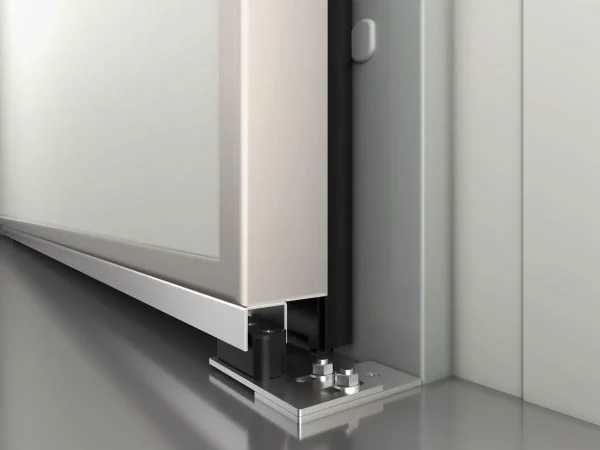

- Lower guide made of stainless steel with floor register (floor mounted)
- “Heavy Duty” sliding system suitable for large-sized doors

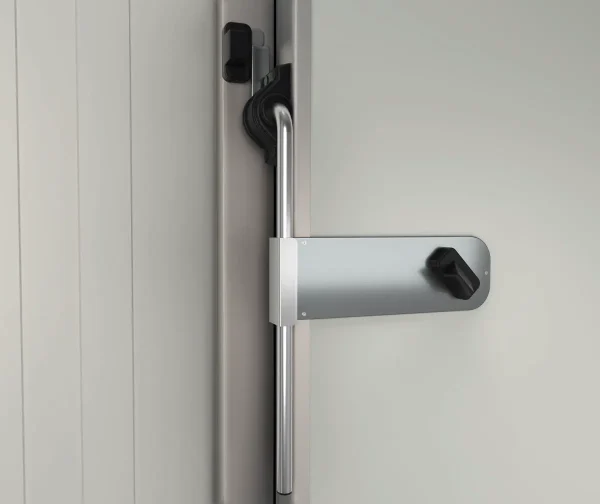

- Original MIV design internal and external lever handle
- Front fixing flat aluminum frame (length 140 mm x thick 45 mm) (Variant: stainless steel/pvc and metal connecting sheet)
- Without threshold (Variant with floor level doorsill)
- Maximum net opening L. 250 x H. 340
OPTIONAL
- Original MIV design lock
- Automated System
